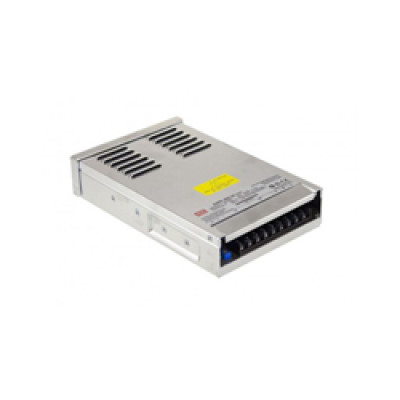

MEAN WELL napajanje ERPF-400-24

MEAN WELL napajanje ERPF-400-24

Opis/specifikacija:

Output:
DC VOLTAGE: 24V
RATED CURRENT: 16.7A
RATED POWER:400,8W
VOLTAGE ADJ. RANGE:21.6 ~ 26.4V
VOLTAGE TOLERANCE:±1.0%

Input:
VOLTAGE RANGE:90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE:47 ~ 63Hz
POWER FACTOR (Typ.):PF?0.95/230VAC, PF?0.98/115VAC
EFFICIENCY:89%
AC CURRENT :2.5A/230VAC 3A/115VAC
INRUSH CURRENT:cold start 45A/115VAC, 90A/230VAC

ENVIRONMENT:
WORKING TEMP:-30 ~ +60?
WORKING HUMIDITY:20 ~ 90% RH non-condensing
VIBRATION:10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axe

DIMENSION:220.4*130*48mm (L*W*H)
WEIGHT: 1,1kg
WARRANTY: 3 years
