Opis

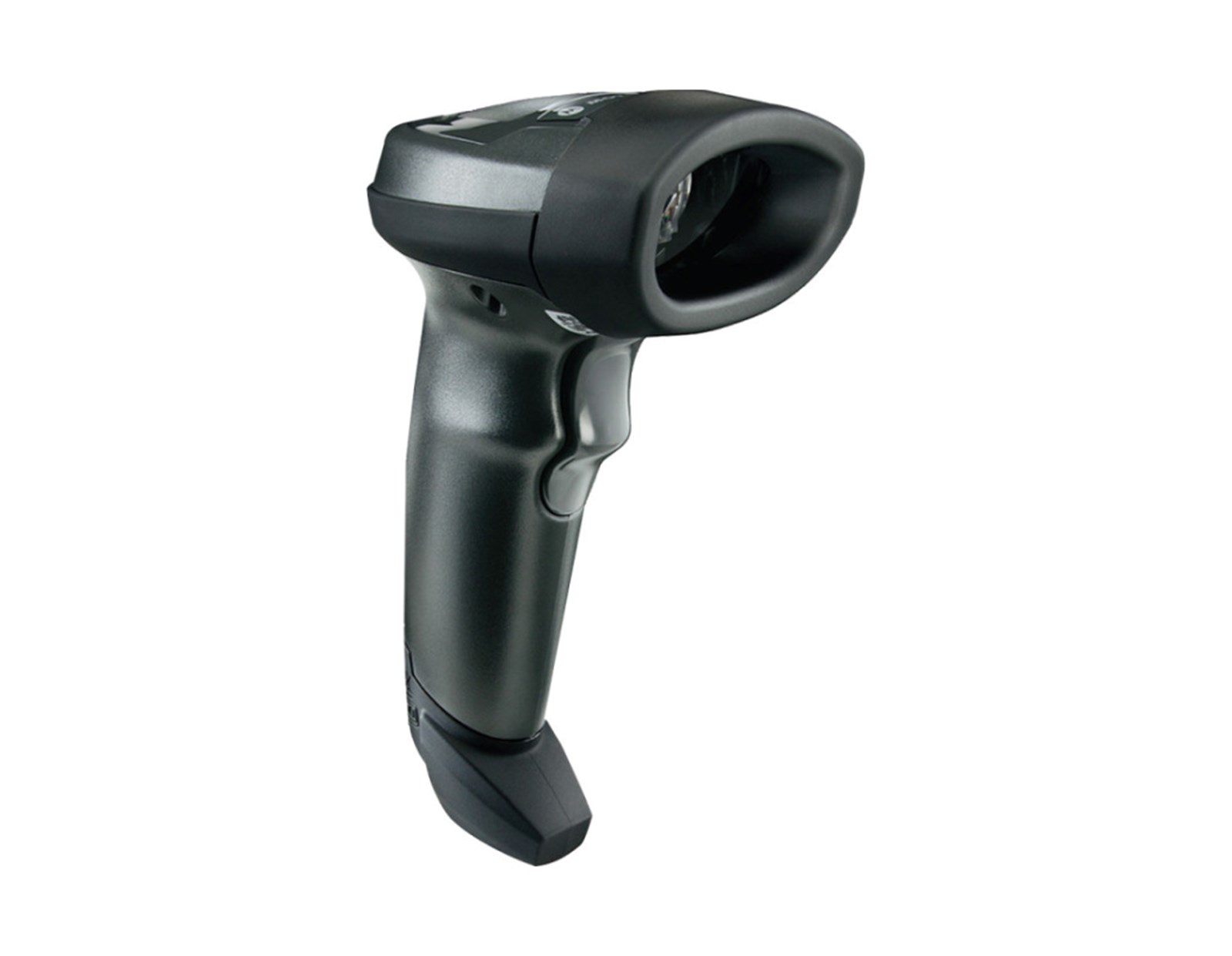

Barcod čitač POS

• Excellent 1D scanning performance
  – Captures virtually all 1D bar codes on any surface — including mobile phone displays
  – Industry-leading working range
  – Compatible with 123Scan2 and Scanner Management Service (SMS)
  – Superior motion and angular tolerance
  – International keyboard support
  – Withstands 100+ consecutive drops to concrete and 1,000 consecutive 1.64 ft./ 0.5 m tumbles
  Specifications
  Physical Characteristics
  – Dimensions: 16 cm H x 6.7 cm W x 9.9 cm L
  – Weight: 140 grams
  – Voltage and Current: 5VDC ± 10%
  * <165 mA scanning
  * <40 mA standby
  * <2.5 mA USB suspend
  * <4.0 mA low power mode (when enabled, RS232 and Keyboard Wedge only)
  – Power Source: Host power or external power supply
  – Color: Twilight Black
  – Supported host interfaces: USB, RS232, Keyboard Wedge and IBM RS485
  – Keyboard Support: Supports over 90 international keyboards
  Performance Characteristics
  – Skew Tolerance: ±45°
  – Pitch Tolerance: ±45°
  – Roll Tolerance: ±45°
  – Scan Pattern: Single bright aiming line
  – Scan Angle: Horizontal 35°
  – Scan Speed: 547 scans per second
  – Motion Tolerance: 63.5 cm per second
  – Light Source: LED Class 1 device 617mm (amber)
  – Min. Print Contrast: 15% MRD
  User Environment
  – Ambient Light Immunity: Max 108,000 lux
  – Operating Temp.: 0° C to 50° C
  – Storage Temp.: -40° C to 70° C
  – Humidity: 5% to 95% RH, non-condensing
  – Drop Specs: Over 100 drops at 5 ft./1.5 m at room temperature; survives 6 ft./1.8 m drops to concrete
  – Tumble Testing: 1,000 cycles (2000 drops) in 1/2 meter tumbler
  – Environmental Sealing: IP42
  – Bar Code Symbologies: UPC/EAN: UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, Bookland ISBN Format, UCC Coupon Extended Code, ISSN EAN Code 128 Including GS1-128, ISBT 128, ISBT Concatenation, Code 39 including Trioptic Code 39, Convert Code 39 to Code 32 (Italian Pharmacy Code), Code 39 Full ASCII Conversion Code 93 Code 11 Matrix 2 of 5 Interleaved 2 of 5 (ITF) Discrete 2 of 5 (DTF) Codabar (NW – 7) MSI Chinese 2 of 5 IATA Inverse 1D (except all GS1 DataBars) GS1 DataBar including GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded
• Kataloški broj: LI2208-SR7U2100SGW /50136
• Barcode: 5711045787942
